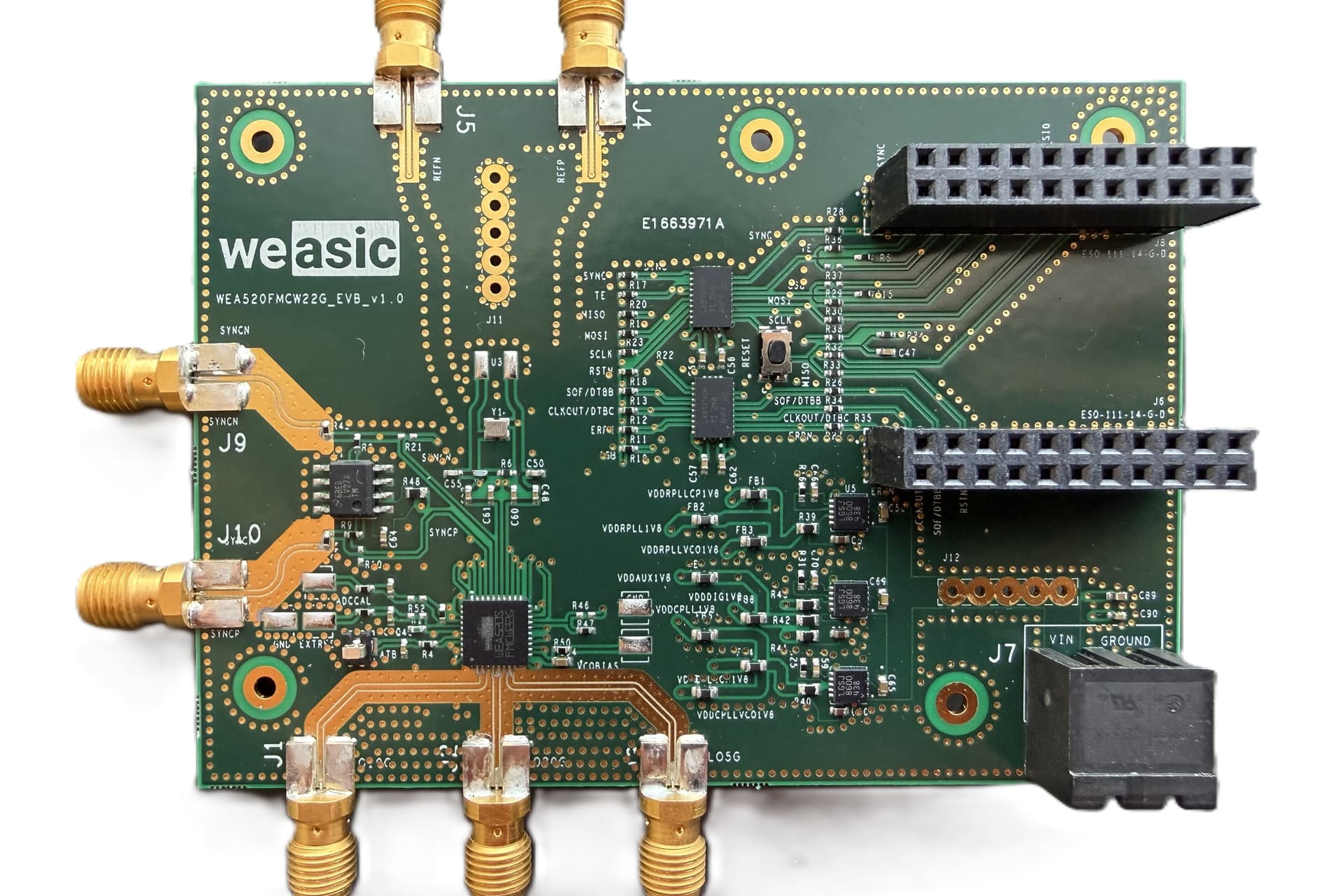

The WEA520SFMCW22G is a high-performance, ultra-fast, ultra-linear FMCW frequency synthesizer designed to generate 1400 MHz chirps at carrier frequencies up to 20 GHz. It delivers an RF output spanning 7.0 GHz to 20.25 GHz, enabled by four integrated VCOs along with an RF frequency doubler and divider.

Built on WEASIC’s proprietary WeCHIRP™, wePAC™, and weCAL™ technologies, the synthesizer achieves exceptionally fast ramp retrace and settling times while maintaining industry-leading phase noise performance during chirp operation.

The integrated modulator supports phase synchronization for coherent operation with multiple modulators a ...
