Key Facts

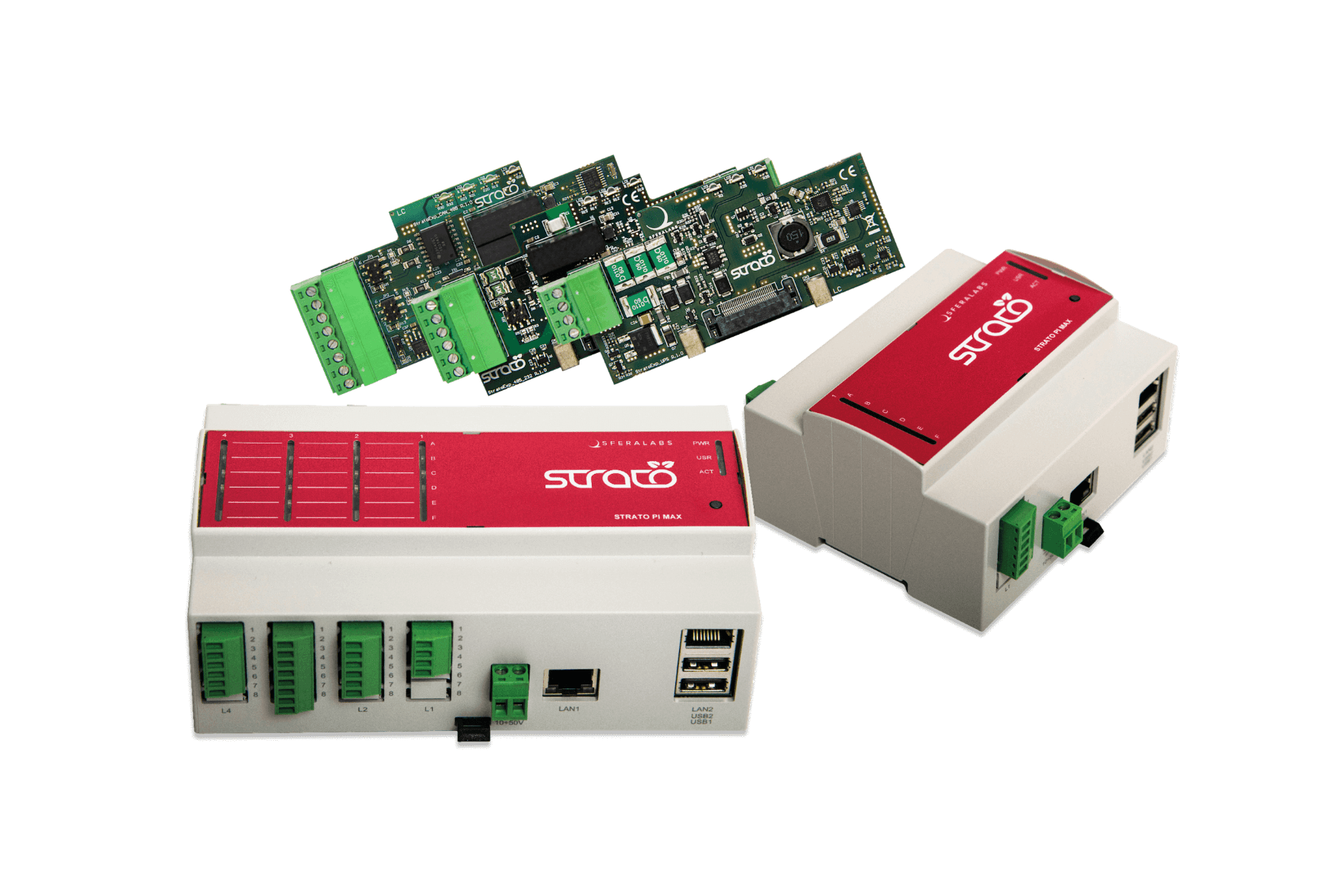

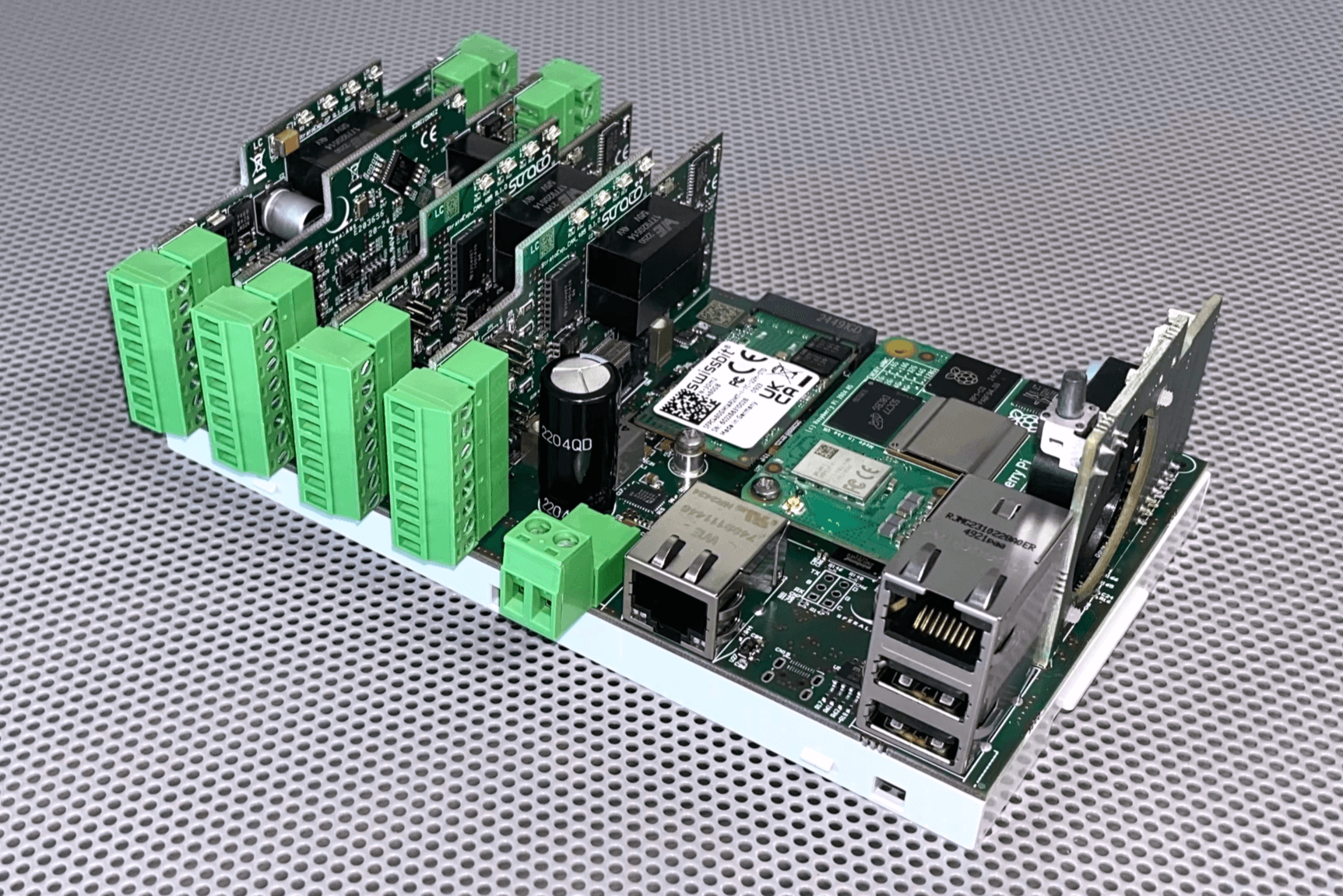

- Modular and expandable architecture: up to four internal X2 expansion slots support RS232/485, CAN, digital & analog I/O, UPS and LTE.
- Dual Ethernet, Wi-Fi, BLE, USB (2), dual SD card support, SSD, secure element chip, hardware watchdog, 3-axis accelerometer, DIN-rail mount.
- Up to 16 RS-485 separate busses, 16 RS-422 point-to-point interfaces or 4 CAN V2.0B networks, all in a compact, 9 DIN Rail modules enclosure.
Categories
Modular Industrial PCs
Product information
Strato Pi Max: Raspberry-Pi based Modular Industrial Controller
Industrial Raspberry Pi CM4/CM5 controller with dual Ethernet, Wi-Fi, Bluetooth 5.0. Up to four Internal X2 expansion slots support RS232/485, CAN, digital & analog I/O and UPS. Dual SD, eMMC and SSD storage options. Compact & DIN-rail mountable.
Strato Pi Max is an extremely versatile industrial server, based on the Raspberry Pi Compute Module 4/5, suitable for use in professional and industrial applications where reliability and service continuity are key requirements.
Strato Pi Max comes in two sizes:

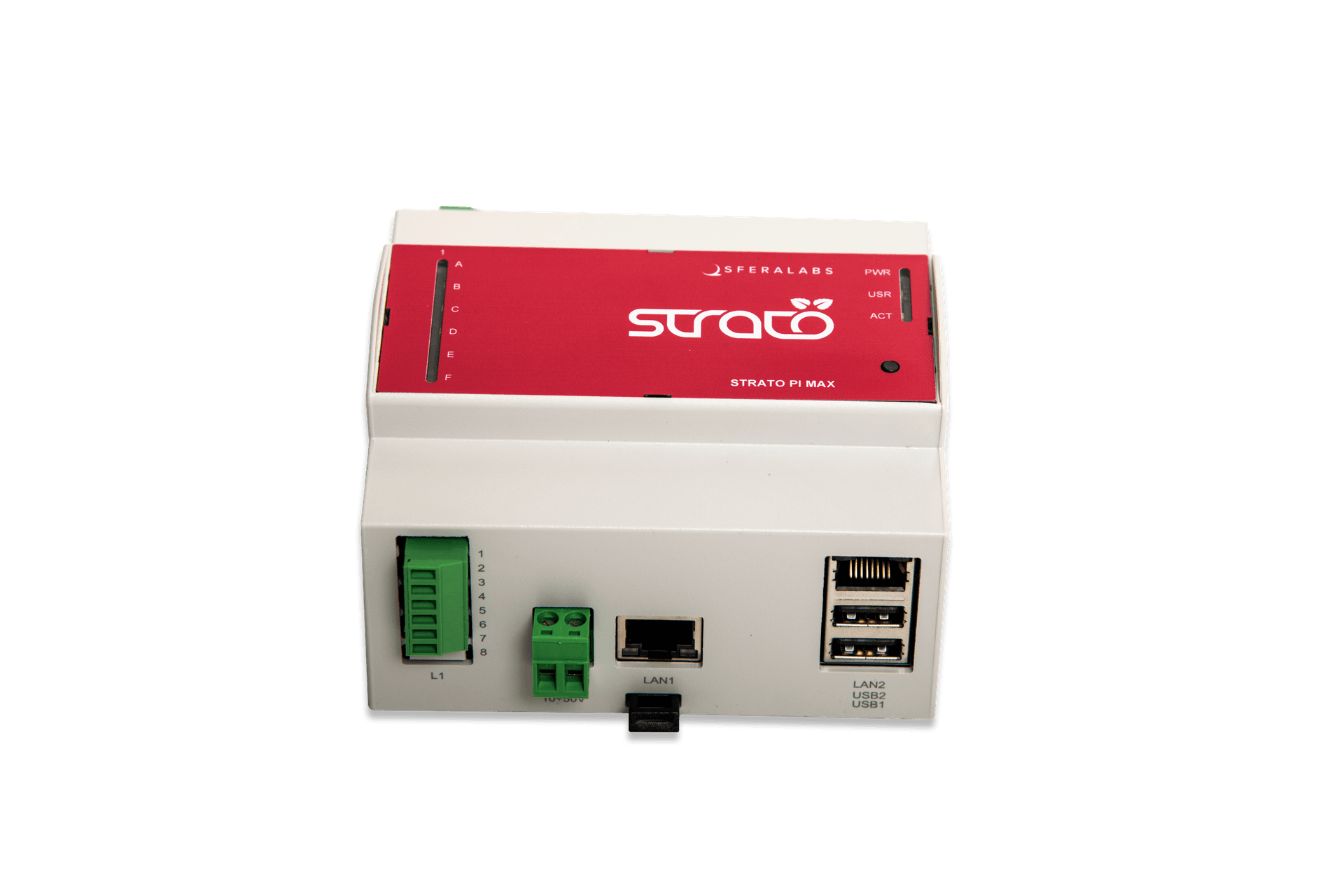

- Strato Pi Max XS: 6 modules DIN rail, 1 expansion slot

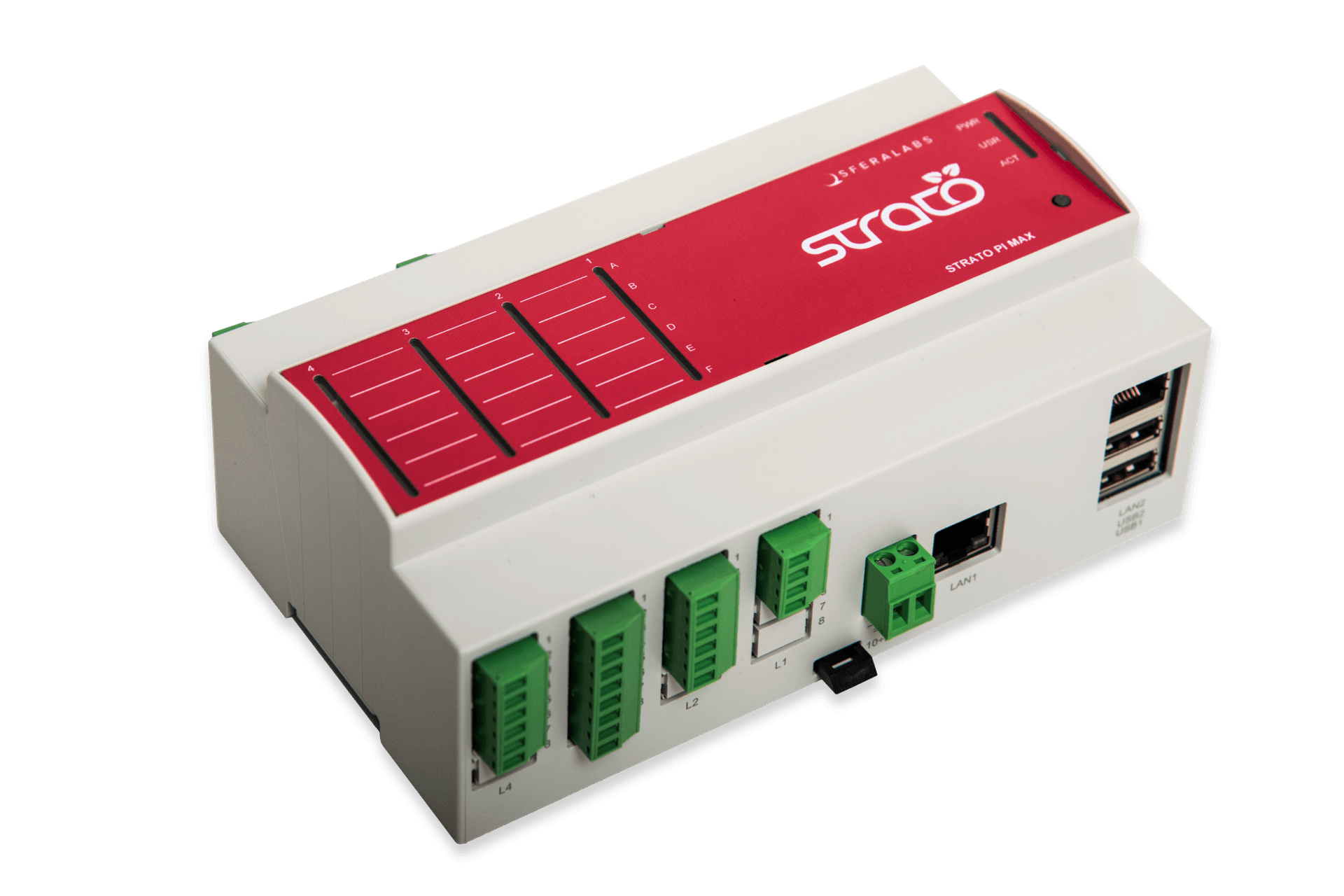

- Strato Pi Max XL: 9 modules DIN rail, 4 expansion slots
