Key Facts
- 10GBASE-T w/ Rugged Positive Locking Connectors USB 3.2 Gen 2 w/ Rugged Positive Locking Connectors
- 2x NVMe PCIe Gen4 M.2 Key-M 2280 Slots +10 to +36V DC Wide Power Input
- Dimensions: 125mm x 108.7mm Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Categories
System Boards
Product information

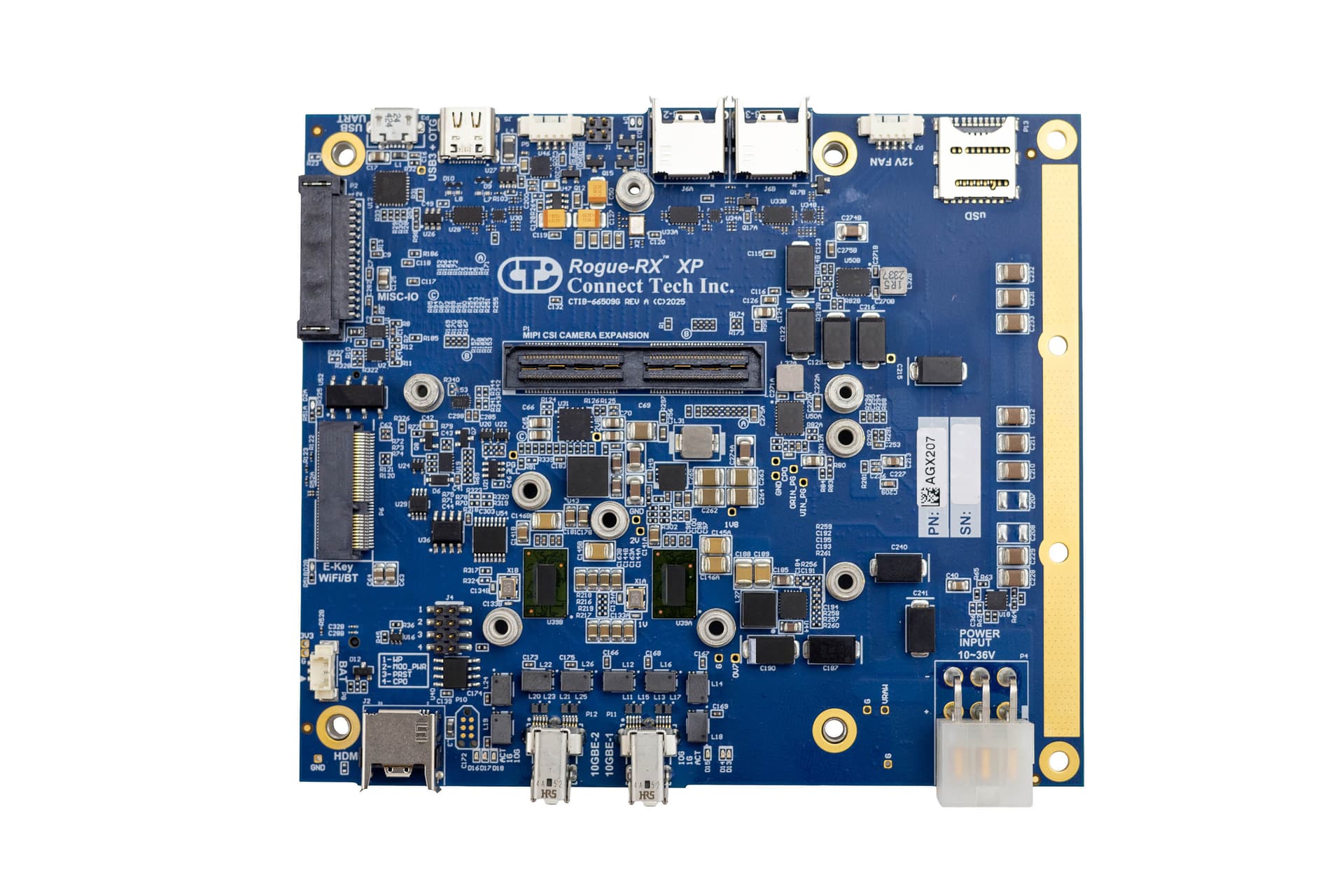

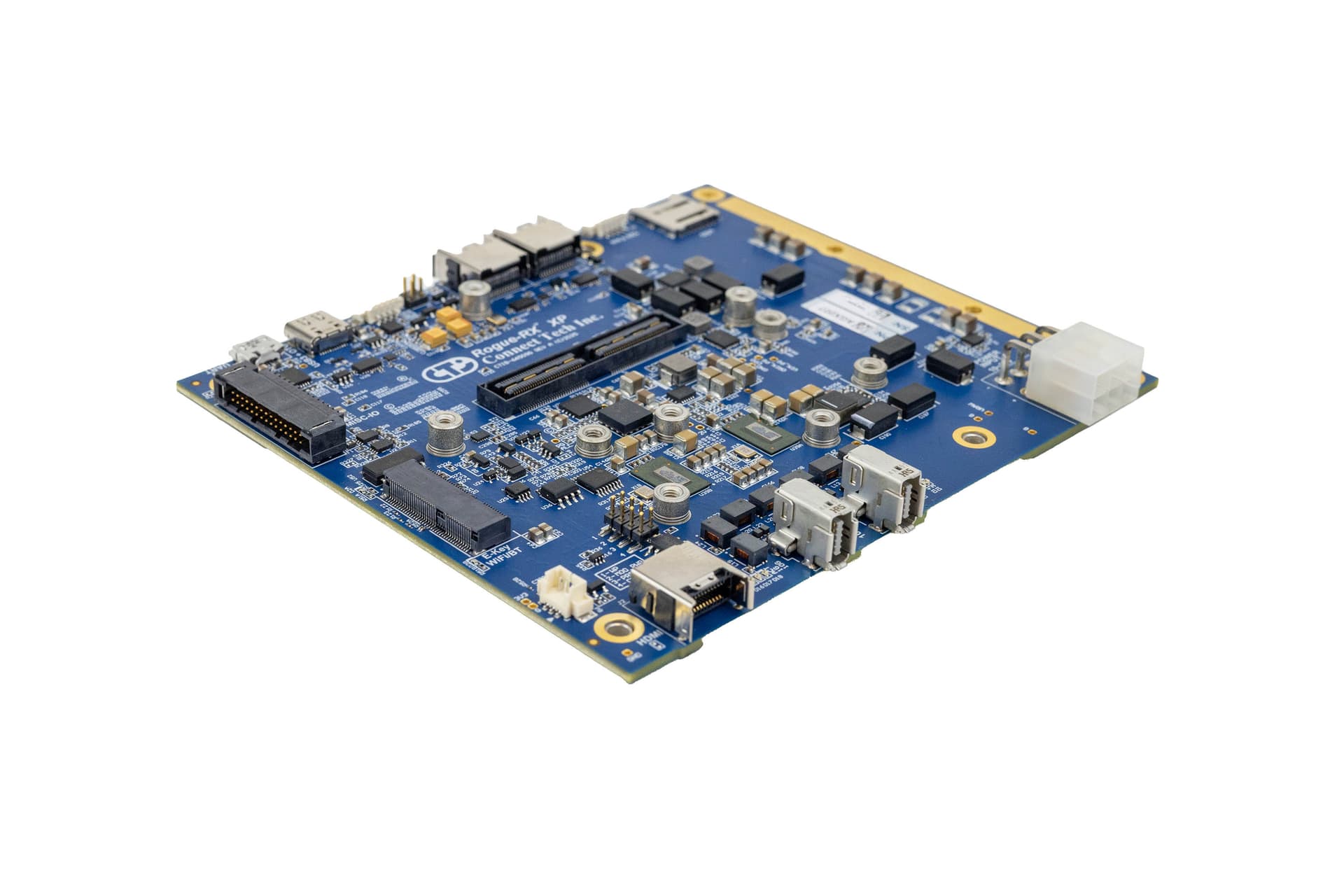

The Rogue-RX XP Carrier for Jetson AGX Orin™ is a full-featured carrier board designed for rugged and harsh environments with an extended power input.
Rogue-RX XP Carrier provides rugged positive locking high-speed connectors for 10GBASE-T, USB 3.2 Gen2 and HDMI. As well as a positive locking discrete wire/pin header for UART, RS-232, I2C, CAN & GPIO.
Rugged camera add-on expansion boards are available to connect directly with high-density MIPI CSI interfaces.
