- Deep protocol capture - Analyze all CSI and DSI packet types and data formats, command and video modes, high speed and low power read and write modes, and DCS (for DSI) supported
- Complex event-based capture triggering for captures - Detailed protocol checking – PHYlevel and protocol level events including lowpower, high speed bursts and read/writes
- Display Stream Compression (DSC) – Decode incoming DSC encrypted content from a DSI-2 host including parsing the Picture Parameter Set metadata parameters
Product information

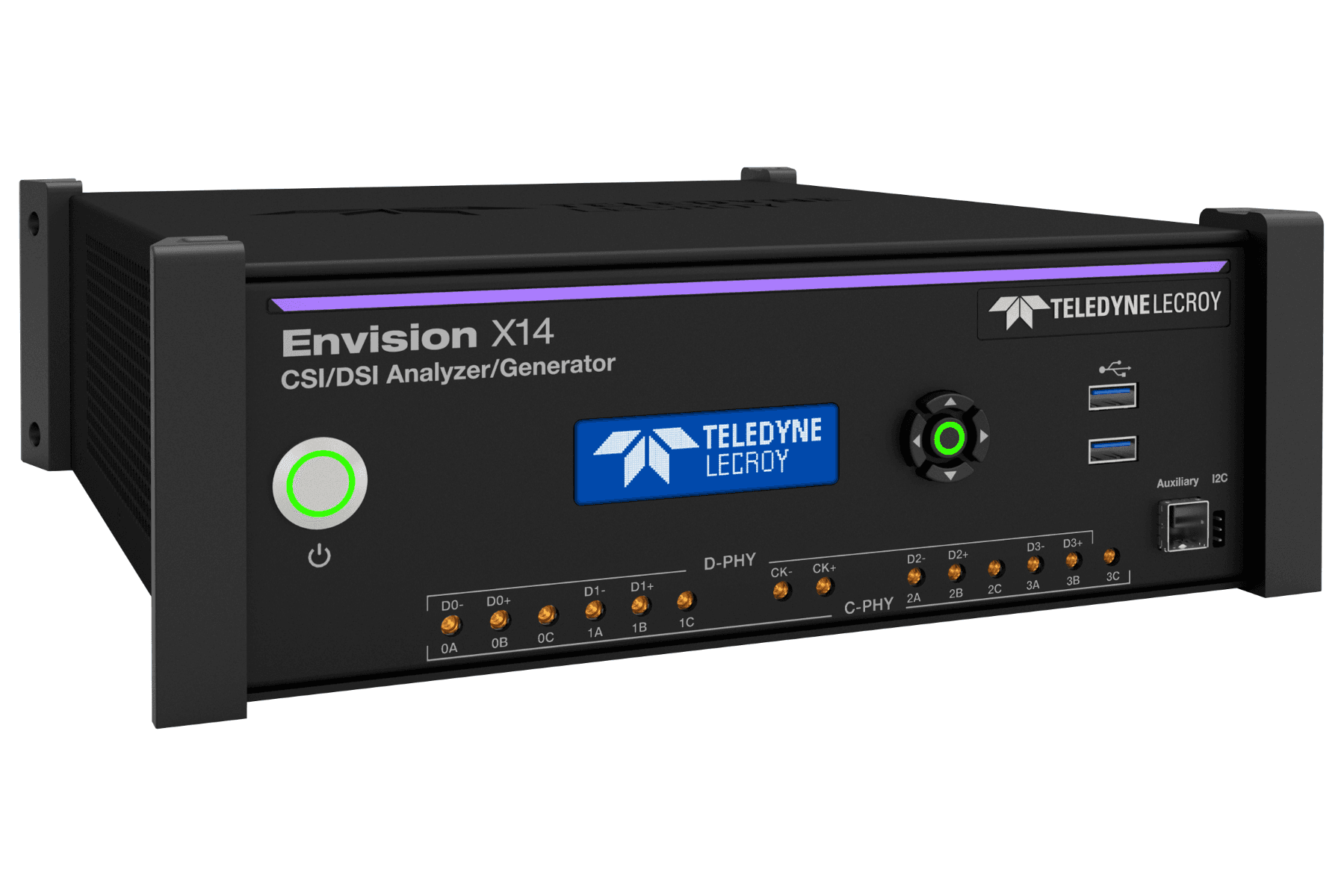

Envision X14 Analyzer
The Envision X14 Analyzer provides deep analysis for MIPI camera and display protocols over C-PHY and D-PHY layers. The X14 Analyzer can be positioned either as an endpoint to test a CSI-2 or DSI-2 stream or tapped in between a CSI-2 or DSI-2 device and host for passive monitoring and analysis. The Envision X14 ensures fast Time-to-Insight through its rich set of innovative features for debug analysis and identifying and resolving elusive protocol errors.The Envision X14 Analyzer will offer an integrated MIPI Conformance Test Specification (CTS) suite for both CSI-2 and DSI-2. This CTS suite will provide checks protocol conformance across all camera and display modes, packet types, and video formats, including high speed and low-power modes.
