Key Facts
- Multiprotocol: Wifi6, Low Power Radio IEEE 802.15.4 (Zigbee, Thread), IEEE 802.15.1 (Bluetooth), Cellular (LTE Cat1bis with GNSS)
- Built for Matter: Expandable with our Matter Bridge application or simply usable as a Matter Controller
- Economies of Scale: Significant economies of scale on the BOM price and production possibilities through Viessmann
Categories
Electronic Displays Single-Board Computers Modules for Wired Communication Modules for Wireless Communication M2M Modules Modules for Localization Hardware Modules for Secure Embedded Systems
Product information

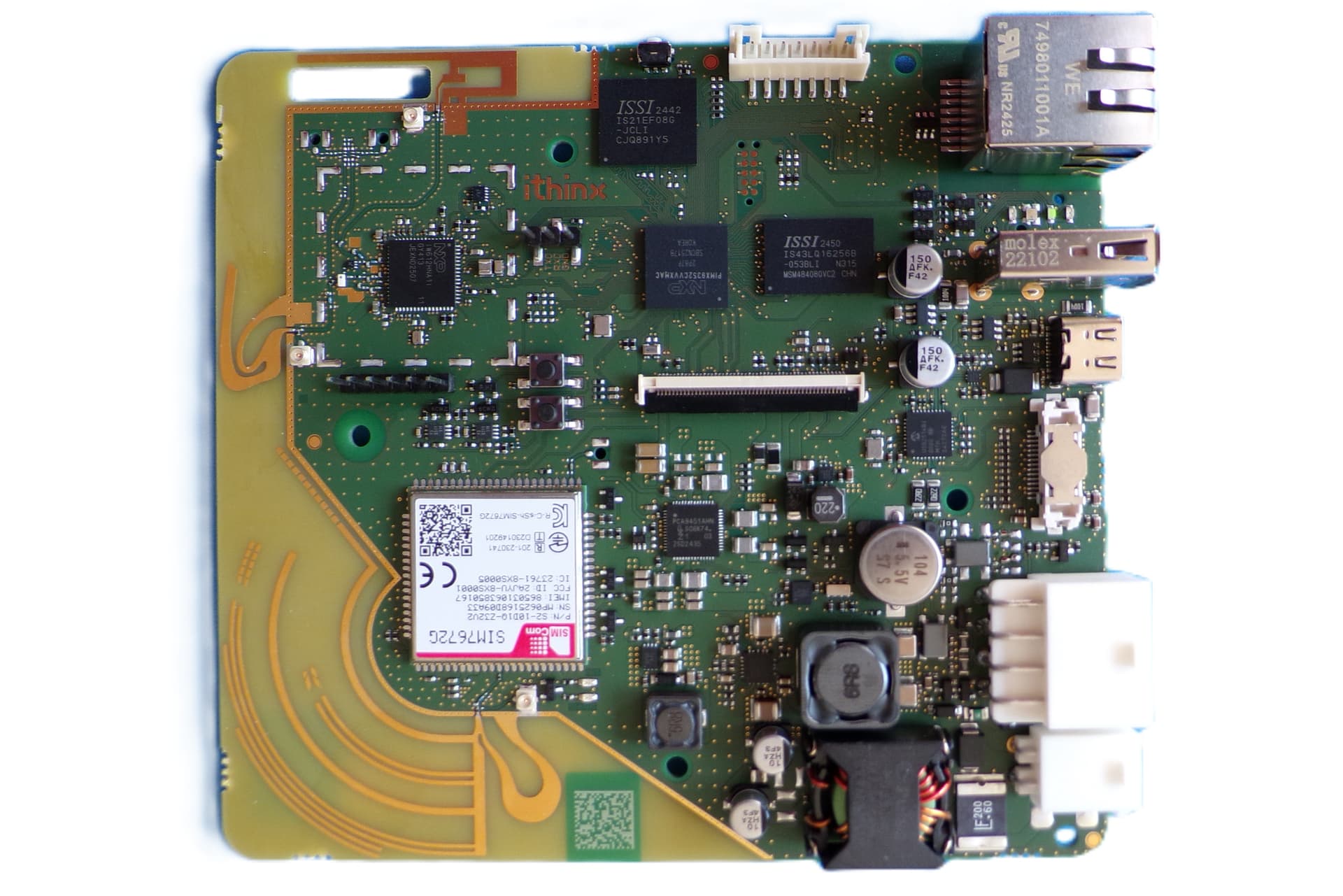

This multi-protocol gateway offers a wide range of applications and easy integration via multiple interfaces. It is designed for fast time-to-market and is equipped with a patented integrated antenna technology that ensures both performance and cost efficiency.
Furthermore, the board offers a Linux operating system with an integrated board support package that ensures security and stability. In addition, wireless drivers that are guaranteed for more than a decade provide a durable and reliable foundation for your product.
Technical Details
Dimensions – 110x120mm²
Powerful NXP i.MX 93 Core
CPUNXP IW612 triple radio module for Wifi and low power radio
SIMCOM 7672G LTE CAT1bis modem
2Gbit DDR4 SDRAM (up to 2GByte possible)
8G ...Download
Watch our product video
iXpro Gateway Video
