MSO Demo Board - Oscilloscope Training and Demonstration Board
Key Facts
- Hands-on training and demo platform for oscilloscopes and MSOs with real-world protocols: SPI, I²C, UART, CAN, CAN-FD, LIN, Manchester, and parallel bus signals.
- Integrated function generator (0.2 Hz–10 kHz) plus PWM, sweep, burst, modulation, and noise signals for demonstrating trigger modes and advanced measurements.
- One board. Countless signals. The MSO Demo Board makes oscilloscope training, education, and live demonstrations simple and effective.
Categories
Evaluation Boards and Starter Kits Test and Measurement Equipment
Product information

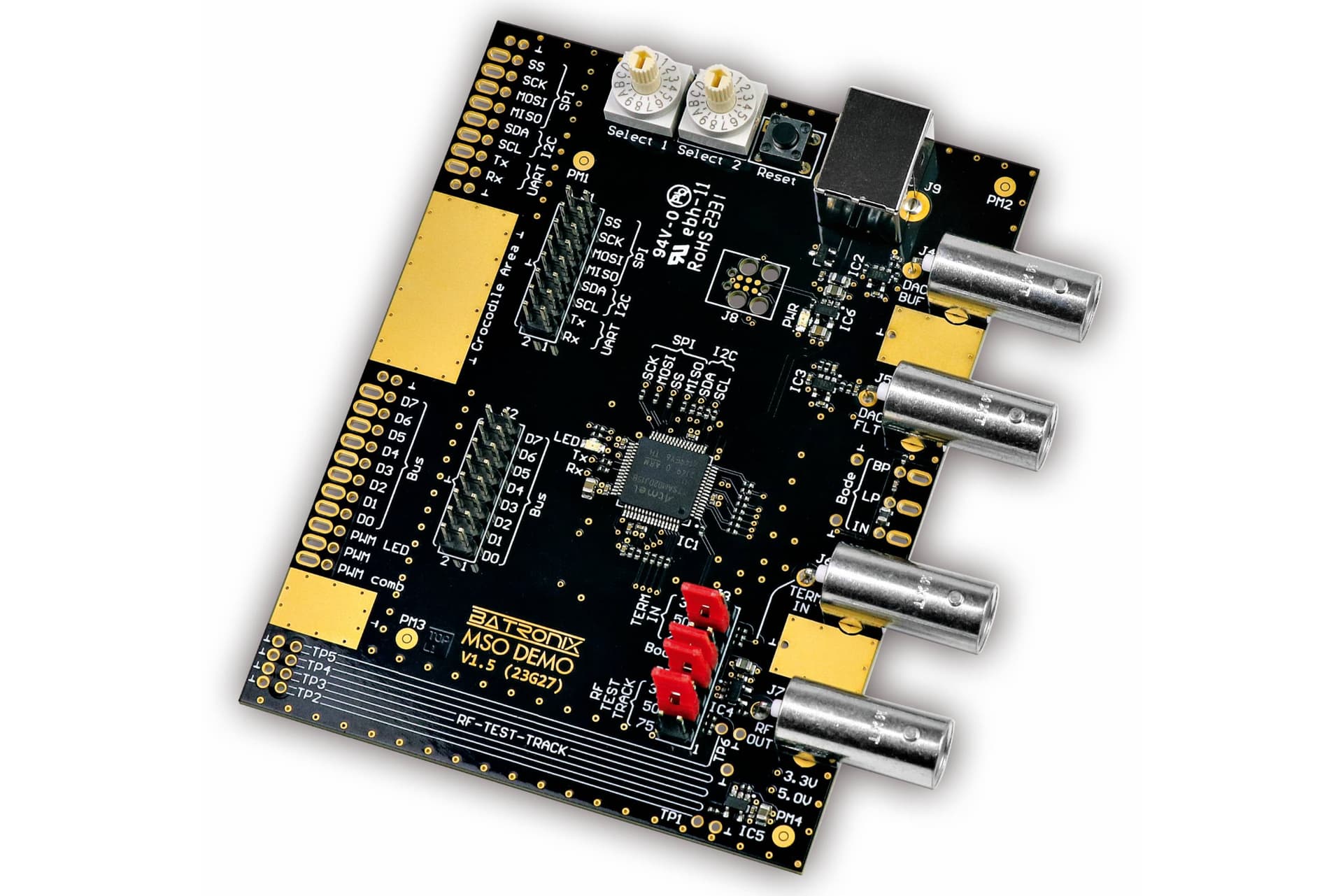

The MSO Demo Board is a compact yet powerful training and demonstration platform for oscilloscopes and mixed-signal analyzers. It enables hands-on exploration of real-world analog and digital signals and is ideal for education, training sessions, workshops, and live demonstrations at trade shows.

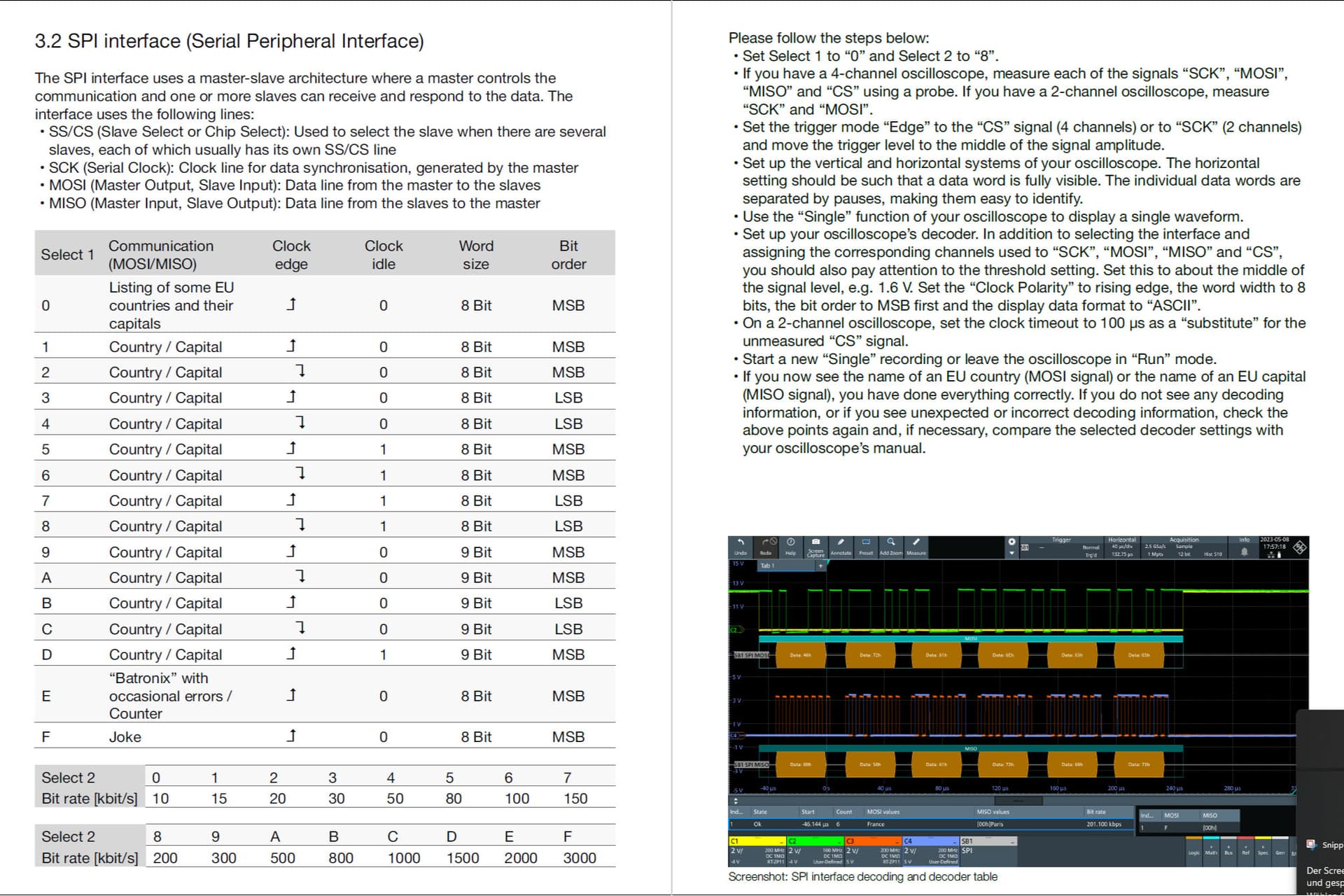

The board provides a wide range of commonly used interfaces and protocols, including SPI, I²C, UART, CAN, CAN-FD, LIN, Manchester, and parallel buses, allowing users to practice triggering, decoding, and analysis exactly as encountered in real embedded systems.
A built-in function generator (0.2 Hz to 10 kHz) offers sine, square, triangle, ramp, PWM, sweep, burst, modulation, an ...Download
