Wichtige Fakten
- Features- ■ 75W & 100W Output Power ■ 4:1 Wide Input Range: 9-36, 18-75, and 40-160Vdc ■ Output Voltage: 3.3, 5, 12, 15, 24, 28, 48, and 54Vdc ■ 3000Vac Reinforced Insulation for 110Vin ■ 3000Vdc Basic Insulation for 24 and 48Vin ■ 5000m Operating Altitude ■ EN 50155, IEC/UL/EN 62368-1 Safety Approval (*pending) ■ 3 Years Product Warranty
- Applications- Train Control and Management Systems (TCMS), Passenger Information Systems, Lighting systems in train cars, Air conditioning and ventilation control units, Robotic arms and industrial robots, Programmable Logic Controllers (PLCs), and Human-Machine Interfaces (HMIs)
Kategorien
Module für die Energieversorgung
Produkt Information

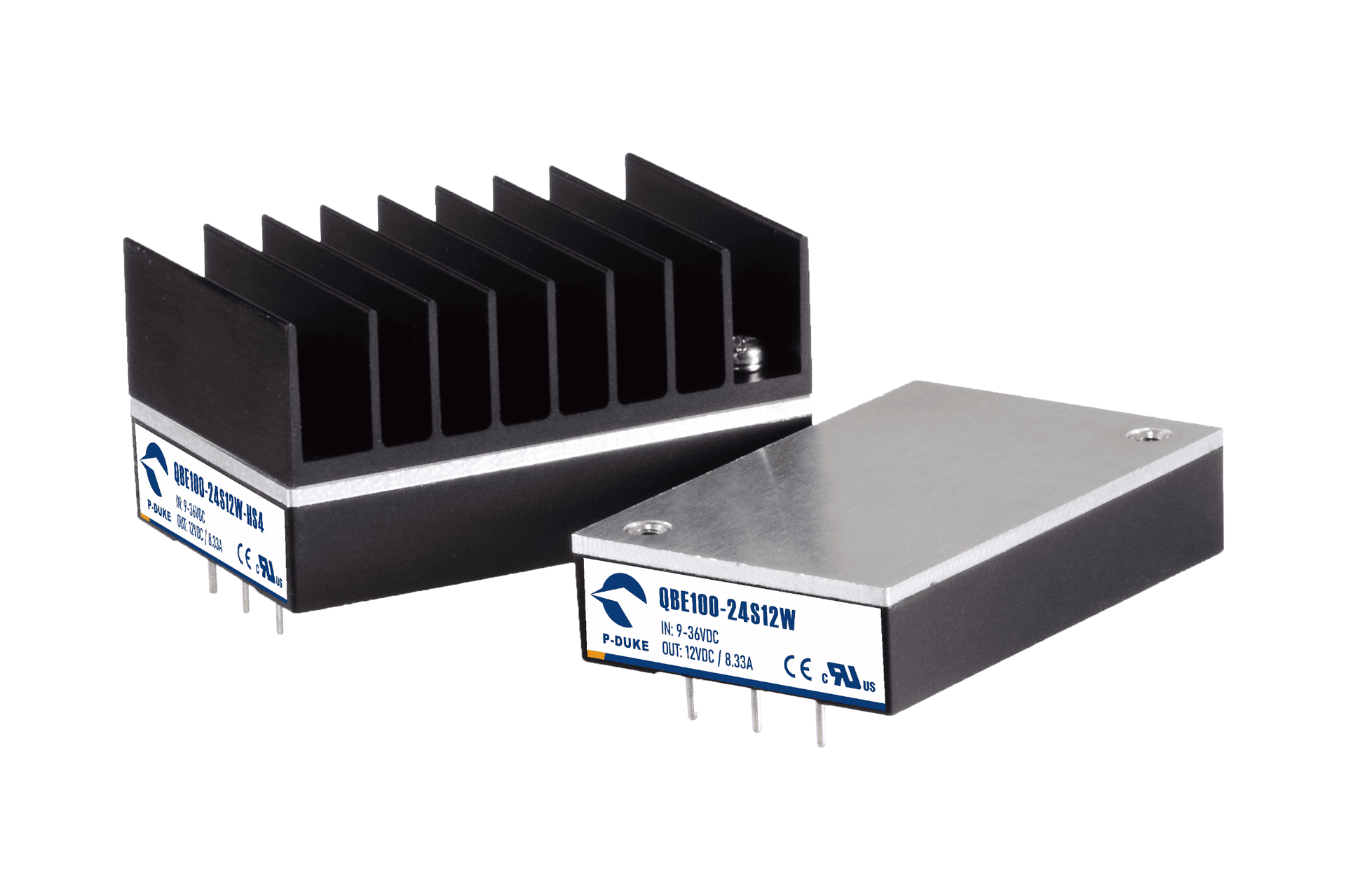

The QBE75W and QBE100W represent the latest generation of DC/DC converters, designed to seamlessly replace the QAE100W series. Engineered to meet the rigorous demands of industrial and railway (rolling stock) applications, these converters significantly enhance conversion efficiency, achieving an average of 92%. This improvement reduces power losses, allows for a wider operating temperature range, and enables smaller heatsink designs.
Featuring a versatile 4:1 input voltage range of 9 to 36 Vdc, 18 to 75 Vdc, and 40 to 160 Vdc, the QBE75W and QBE100W series cater to various power systems across different regions. They provide a comprehensive selection of output voltage options, including 3.3, 5, 12, 15, 24, 28, 48, and 54 Vdc, with an adjustable output ran ...Produktexperte
Download Produkt Information
