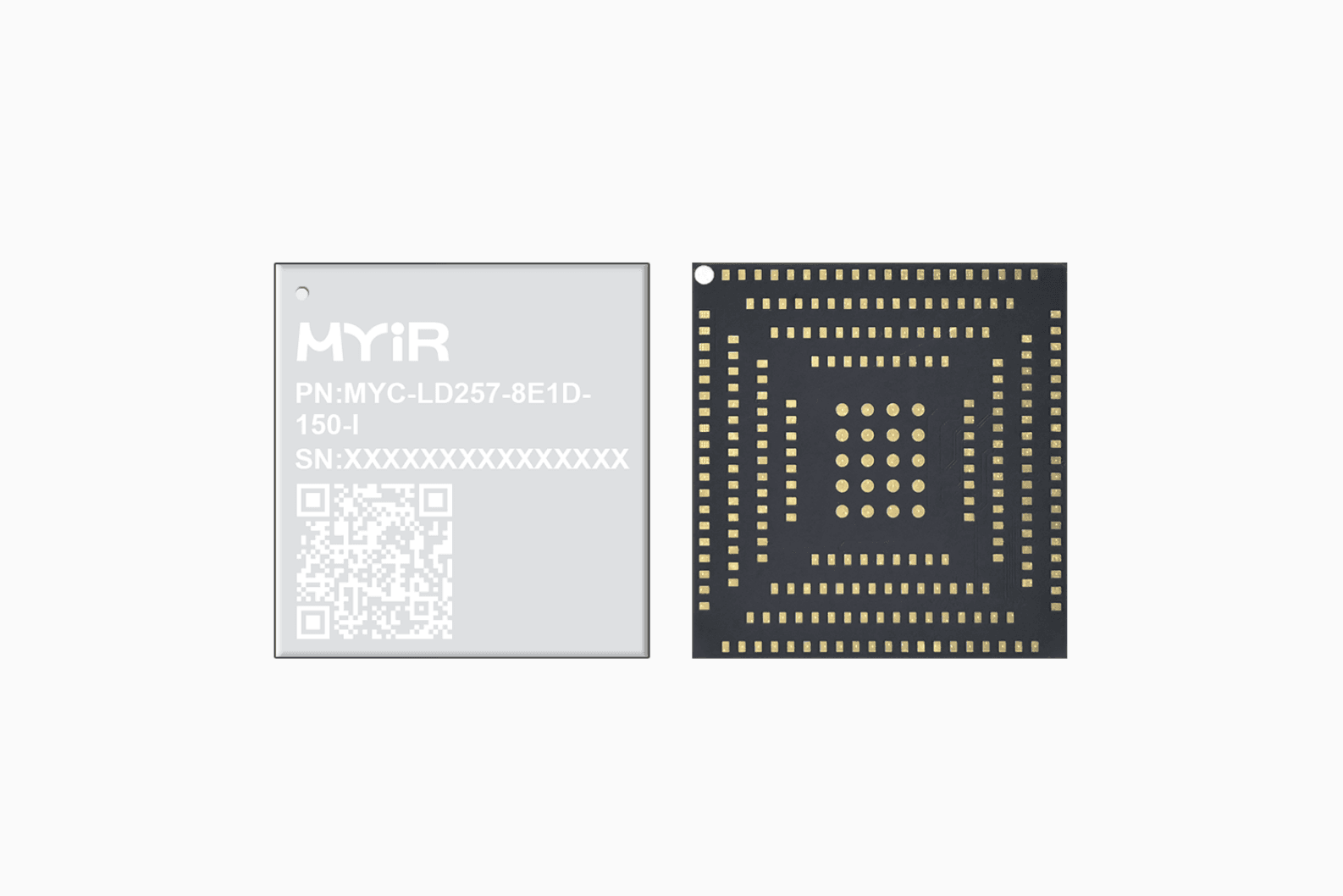

The MYC-LD25X is a robust and compact System-On-Module(SOM), measuring 37mm by39mm, designed around the ST STM32MP257D processor.This advanced module incorporates a dual-core ARM Cortex-A35 processor operating at up to 1.5GHz and a 400MHz Cortex-M33 core, offering a high-performance solution tailored for industrial applications. It also features an NPU with up to 1.35 TOPS for advanced edge AI capabilities and a 3D GPU, as well as H.264 encoding/decoding support, thus delivering powerful multimedia and artificial intelligence processing capabilities.

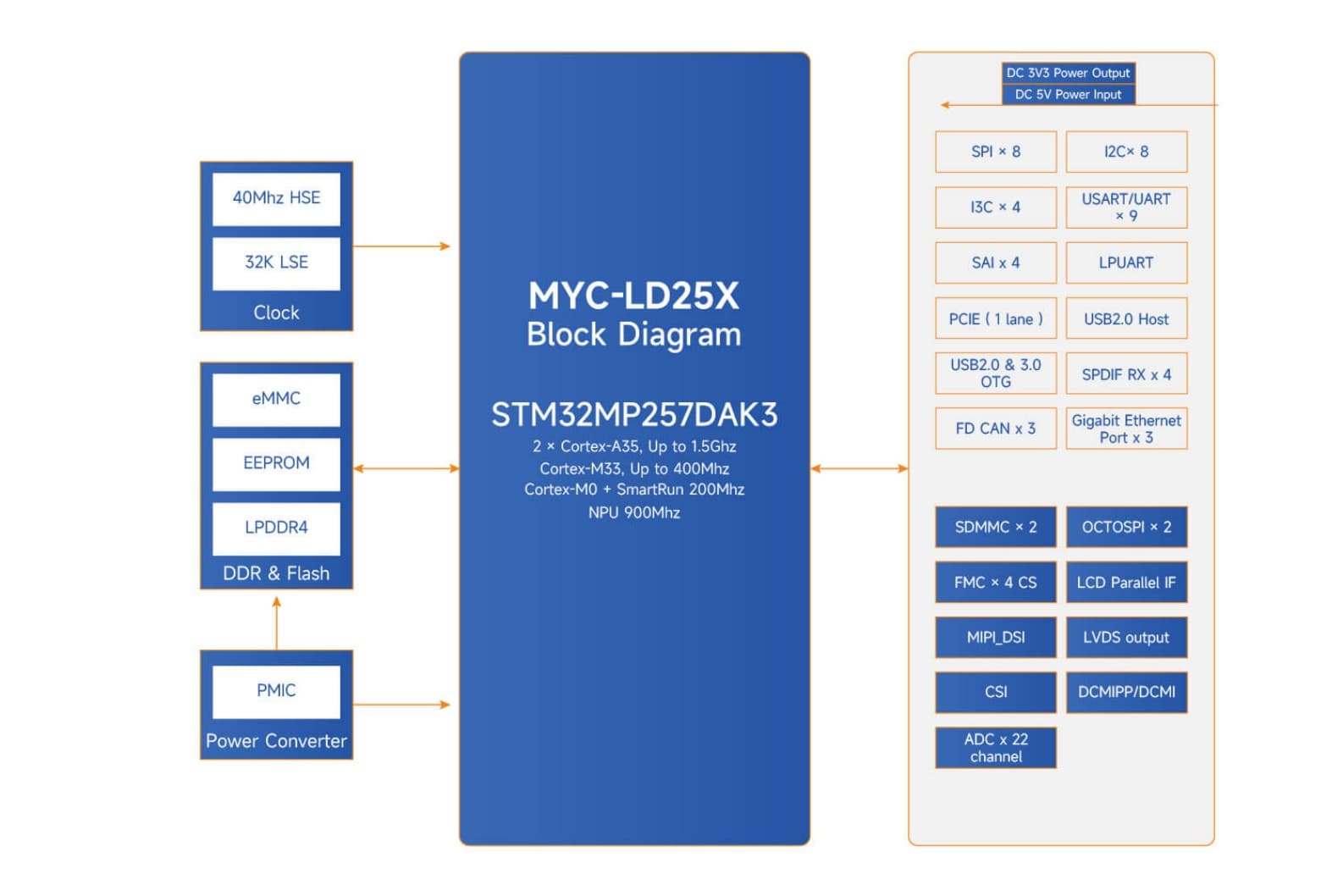

Harnessing the capabilities of the STM32MP257D processor, the MYC-LD25X incorporates a power management IC (PMIC) STPMIC25APQR, 1GB or 2GB LPDDR4 memory,8GB eMMC storage, and a 256Kbit EEPROM. It provides extensive peripheral an ...
